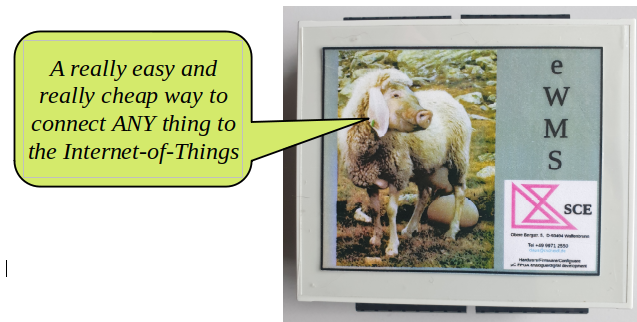

eWMS1
  (c) Georg Mittenecker - http://kamelopedia.mormo.org/index.php/Datei:Wollmilchsau.jpg ShareAlike 2.5

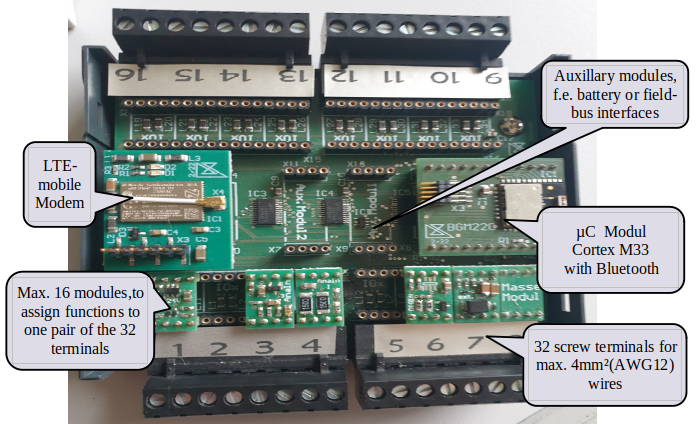

inside eWMS


  • LOW energy design with energy harvesting. With a Li-Battery module, no supply would be necessary at all

  • connects to WWW via mobile network (LTE)

  • connects to local Bluetooth mesh devices

  • controlled by any browser anywhere - demo here

  • NO NEED to configure the screw terminals, when wiring them to any external sensor, or actor. Only put in an IO-module, that‘s all.

  • see table of available IO-modules (more to come)


Modul

Masse
Ground Modul
AnaInI
4-20mA current loop measurement
AnaInU
0-10V voltage measurement
AnaRes
Resistor messurement ( PT100(0) temperature)
ACDCin
Input  module, max. 40V AC/DC voltage


SSRout
SolidState relais; output module max. 650V/20A DC/AC
DigOut
digital output modul, open drain max 28V, 30mA


extSup
External  supply module 6-40V
TTY
serial module, 3.3V TTY level, 5V tolerant
RS232
serial module, V24 level, RS232 compatible
AC230V
digital Input module, isolated, 230V AC
DigIn
digital Input module, 3-8V DC
